NEW QUESTION # 28
What is the most destructive factor affecting the durability of mortar joints?
- A. Location of control joints
- B. Efflorescence
- C. Wind loading
- D. Expansion of moisture by freezing
Answer: D
Explanation:
The most destructive factor for mortar joints is freeze-thaw cycling: absorbed moisture expands upon freezing (~9% volume increase), creating internal stresses that crack mortar and spall joints.
A: Wind loading affects wall stability, not directly mortar joint durability.
B: Control joints manage thermal/movement cracks but aren't the main durability factor.
C: Efflorescence is cosmetic and less destructive than freeze-thaw action.
PDD Reference: Masonry durability-Moisture management; ASTM C270 Mortar Specs; ARE 5.0 PDD
"Building envelope durability in cold climates."
NEW QUESTION # 29
Which code dictates the number of required exits for a 300-person assembly space?
- A. International Mechanical Code
- B. International Building Code
- C. ADA
- D. NFPA 70
Answer: B
Explanation:
IBC governs occupancy classification, occupant loads, and required means of egress. A 300-person taproom triggers egress path requirements under IBC Chapter 10. Objective 1.3 addresses code compliance.
NEW QUESTION # 30
An architect is coordinating the mechanical and structural systems in a building with exposed ceilings. The HVAC ducts are interfering with a large concrete beam in the open office area.
- A. Relocate the beam to accommodate the ductwork
- B. Shift the HVAC ducts below the beam
- C. Request the mechanical engineer to reroute the ductwork
- D. Increase the ceiling height
Answer: C
Explanation:
In PDD, the architect must coordinate consultant drawings. When a conflict exists (here, duct vs. beam), the best course is to ask the responsible engineer (mechanical) to reroute the ductwork to clear the beam. As per ARE 5.0 Handbook Objective 3.1, the architect is expected to "coordinate building systems and their integration."
NEW QUESTION # 31
Which of the following documents would the architect need in order to prepare the specifications?
- A. Geotechnical report, building sections, and room finish schedule
- B. Legal survey, geotechnical report, and traffic management plan
- C. Architectural floor plans, room finish schedule, and traffic management plan
- D. Legal survey, engineering drawings, and door schedule
Answer: A
Explanation:
To prepare project specifications, the architect requires documents that inform about site conditions, building construction, and interior finishes:
Geotechnical report provides soil conditions, foundation recommendations, and site constraints.
Building sections provide detailed information on assemblies, materials, and vertical relationships.
Room finish schedule identifies finishes, materials, and related specifications for interior spaces.
Legal surveys, traffic management plans, and door schedules are important for planning and design coordination but less directly informative for writing specifications.
References:
NCARB ARE 5.0 Review Manual, Project Development and Documentation chapter CSI Construction Specifications Practice guides Project delivery and documentation best practices
NEW QUESTION # 32
Refer to the exhibit.
An architect is designing a multipurpose room that will operate daycare services as well as exercise classes.
The multiple occupancies within the space utilize components of the same means of egress system.
What is the occupant load factor that should be used in calculating egress?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: D
Explanation:
Step-by-Step Reasoning
1. Identify the occupancies from the question:
* Day care services # Occupant load factor = 35 net (from table in the exhibit)
* Exercise classes # Occupant load factor = 50 gross (also from table in the exhibit, under "Exercise room")
2. Determine how to calculate the occupant load for multiple occupancies:
According to IBC 2018, Section 1004.1.2 (Areas without fixed seating) and NCARB PDD study materials:
When multiple occupancies share the same means of egress system, the occupant load for the whole space shall be the sum of the occupant loads of the various occupancies.
However, if the space is not divided and is used interchangeably (multipurpose), the most stringent occupant load factor is applied to the entire area.
3. Applying the code:
* The multipurpose room is used for both daycare and exercise.
* Since the same space is used for different functions at different times (not divided), the most restrictive occupant load factor (the smaller number) should be used.
* Smaller occupant load factor = 35 net (Day care) vs. 50 gross (Exercise room).
4. Why "net" vs. "gross" matters here:
* Net floor area excludes certain spaces like walls, corridors, mechanical rooms.
* Gross floor area includes the entire footprint.
* Even though "net" typically results in a smaller area, when calculating load factors, the smaller occupant load factor number results in a larger occupant load - making it more restrictive for egress.
5. Conclusion:
The correct occupant load factor to use for this multipurpose space = 35 net (Day care), as it results in the largest occupant load and is the most restrictive for egress design.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Code Analysis - Occupant Load & Egress Sizing
* IBC 2018, Section 1004.1.2 - Areas without fixed seating, determining occupant load for multiple functions
* Architectural Graphic Standards - Occupant Load Calculation examples
* Building Codes Illustrated by Ching & Winkel - Chapter on Occupancy Load Factors and Egress Requirements
NEW QUESTION # 33
An architect is designing a new poured-in-place concrete residential tower with individual condo units. The drawings specify exposed cantilevered concrete balconies with glass guardrail parapets. The exterior wall specifications have already been developed and established. They are now coordinating the specification requirements for construction of the balconies in the project manual.
Which items are required to be specified as part of the balcony scope? (Check the four that apply)
- A. Glazing system
- B. Drainage
- C. Door types
- D. Guardrail anchoring
- E. Furnishings
- F. Floor finish coating
Answer: A,B,D,F
Explanation:
In NCARB ARE 5.0 PDD, balconies are considered part of the building envelope and exterior assembly, requiring coordination between structural, architectural, and sometimes MEP elements. The project manual's specification sections for balconies should include all components integral to the balcony's construction and performance - not unrelated furnishings or general door types unless they are directly part of the balcony system.
Reasoning for each selection:
A). Drainage - REQUIRED:
Balconies must include drainage provisions to prevent standing water, freeze-thaw damage, and leakage into units. This is part of Division 07 (Thermal and Moisture Protection) in the CSI MasterFormat and directly tied to durability and code requirements.
B). Floor finish coating - REQUIRED:
The balcony surface finish must be specified for slip resistance, durability, weather resistance, and integration with waterproofing membranes. This is usually in Division 09 (Finishes) but referenced in Division 07 for waterproof coatings.
E). Guardrail anchoring - REQUIRED:
Structural anchorage details for the glass guardrail parapets must be specified to meet IBC load requirements (200 lb concentrated load per IBC 1607.8) and to ensure safety. This falls under Division 05 (Metals) or Division 05/08 integration.
F). Glazing system - REQUIRED:
Glass guardrails involve tempered or laminated safety glazing per IBC Chapter 24 and must be specified, including thickness, type, finish, and installation method.
Why the others are excluded:
C). Furnishings - NOT REQUIRED: Balconies may have furniture, but these are FF&E, not part of the construction scope in the balcony specification.
D). Door types - NOT REQUIRED: Doors leading to balconies are part of the exterior wall fenestration package, not the balcony construction section.
NCARB PDD References:
ARE 5.0 Handbook - PDD Section: Integration of building systems and detailing of assemblies CSI MasterFormat Divisions 05, 07, 08, 09 for balcony scope items IBC 2018 Sections 1607.8, 1015 for guardrail design
NEW QUESTION # 34
Refer to the exhibit.
For a plywood panel carrying the grade stamp shown, which of the following is the maximum recommended span for use in a floor system?
- A. 16 in
- B. 108 in
- C. 32 in
- D. 15 in
Answer: A
Explanation:
1. Understanding the APA Grade Stamp
The stamp in the exhibit reads:
* APA RATED SHEATHING 32/16
* 15/32 INCH (thickness)
* SIZED FOR SPACING
* EXPOSURE 1 (can handle temporary moisture exposure)
2. Meaning of "32/16"
The numbers 32/16 are the span ratings for the panel:
* 32 inches = maximum recommended span for roof sheathing (when applied perpendicular to supports).
* 16 inches = maximum recommended span for floor sheathing (when applied perpendicular to supports).
These ratings are established by APA (The Engineered Wood Association) based on panel thickness, grade, and allowable loads/deflection limits.
3. Applying to the Question
The question asks specifically for maximum recommended span for use in a floor system.
From the stamp:
* Floor span rating = 16 inches
* Therefore, the correct answer is 16 in.
4. Why Other Options Are Incorrect:
* A. 15 in - Not the value given; 16 in is the rating.
* C. 32 in - This is for roof applications, not floor systems.
* D. 108 in - Not related to APA span ratings; possibly confused with the certification number "NBR-
108."
5. NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Building Materials & Assemblies - Wood Products
* Reference Sources:
* APA - The Engineered Wood Association: Panel Span Ratings Guide
* Building Construction Illustrated (Ching) - Plywood and OSB Panel Markings
* IBC Chapter 23 - Wood span and application requirements
NEW QUESTION # 35
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
The owner decides to triple the size of the distillery component of the project to make hand sanitizer and wants to use the Tap Room spaces adjacent to the brewery and distillery for this purpose.
Which of the following must the architect reevaluate and change to accommodate this request? Check the three that apply.
- A. A-04 REFLECTED CEILING PLAN
- B. A-01 LIFE SAFETY PLAN
- C. A-03 FLOOR PLAN
- D. A-06 EXTERIOR ELEVATIONS
- E. A-02 SITE PLAN
- F. A-05 ROOF PLAN
Answer: A,B,C
Explanation:
Tripling the distillery and converting adjacent Tap Room areas to production introduces additional hazard (flammable liquids), changes occupancies/occupant loads, and requires updated fire separations and egress.
A-01 Life Safety Plan must be revised for occupancy classification, fire#resistance ratings between uses, travel distances, exit widths/number, and signage.
A-03 Floor Plan must change to show new room uses, rated partitions/doors, openings, and equipment footprints.
A-04 Reflected Ceiling Plan must change for new/relocated rated assemblies at ceilings (e.g., continuity of fire
/smoke barriers), sprinkler/exit sign/FA device locations, and any duct-damper/access changes.
Site (B), Roof (E), and Elevations (F) are not directly driven by the interior use change.
PDD refs: IBC Chs. 3, 5-10 (occupancy, separation, egress), coordination of architectural, fire protection, and MEP on drawings (Division 01).
NEW QUESTION # 36

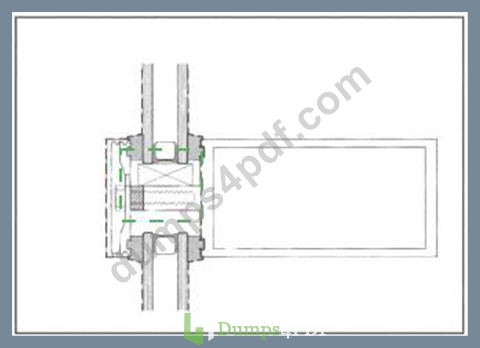

In winter conditions, when the outdoor air is below freezing and the indoor humidity is maintained at 40 percent relative humidity for 24 hours a day, ice forms on the exterior surface of the stone facing.
Which of the following elements is missing from the building wall section?
- A. Vapor barrier
- B. Wall insulation
- C. Air space
- D. Rain screen
Answer: A
Explanation:
With outdoor below freezing and indoor RH ~40% continuously, interior vapor will migrate outward. If a proper interior-side vapor barrier/retarder is missing, moisture moves through the wall and can condense and freeze at the cold exterior stone, forming visible ice. Insulation, air spaces, or rain screens help heat/moisture management, but the symptom (ice due to vapor diffusion) points specifically to the lack of an interior vapor barrier in a cold-climate assembly.
PDD references: Moisture control & vapor retarder strategy in cold climates; condensation diagnostics (ASHRAE Fundamentals; ARE 5.0 PDD-Envelope moisture control).
NEW QUESTION # 37
Owners of a busy two-story theater complex want to renovate. The new renovations include increasing the second floor lobby and doubling the number of second floor movie screens. The owner favors the use of escalators. Movies are scheduled to start simultaneously every three hours. The theater currently has a pair of
24-inch-wide parallel escalators, one of which goes up and the other down.
Which of the following should be proposed to accommodate the increased traffic to the second floor?
- A. Install a new elevator in the lobby
- B. Increase the existing escalator speeds to 130 fpm
- C. Extend balustrades at escalator landings
- D. Install a new escalator that reverses direction
Answer: D
Explanation:
Given:
The theater doubles its second-floor movie screens, increasing patron traffic.
Existing escalators are two 24-inch wide units, one up and one down, with simultaneous movie start times every 3 hours.
To handle increased traffic:
Increasing existing escalator speed to 130 fpm (option A) is limited by safety and code limits (typically max around 100 fpm); also increases wear.
Installing a new elevator (option B) is helpful for accessibility but does not efficiently handle high flow of large crowds during peak.
Installing a new escalator that reverses direction (option C) (also called a "dance" or "two-way" escalator) allows flexibility to accommodate peak traffic flow-e.g., two escalators up during rush times and one down, or vice versa.
Extending balustrades (option D) improves safety but does not increase capacity.
Therefore, option C is the best solution to manage increased passenger flow.
References:
NCARB ARE 5.0 Review Manual, Environmental Systems and Building Services chapter Vertical transportation design principles in public assembly spaces ASME A17.1 Safety Code for Elevators and Escalators
NEW QUESTION # 38

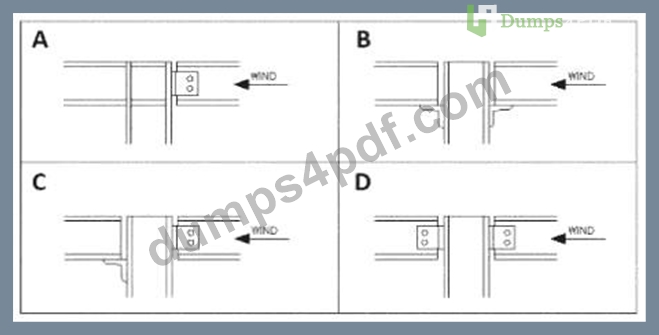

Refer to the exhibit.

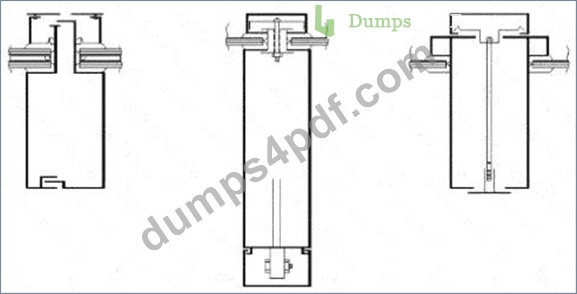

In the curtain wall systems shown, each of the aluminum mullions is designed to allow for which of the following?
- A. Capillary action
- B. Horizontal expansion
- C. Surface tension
- D. Vertical expansion
Answer: D
Explanation:

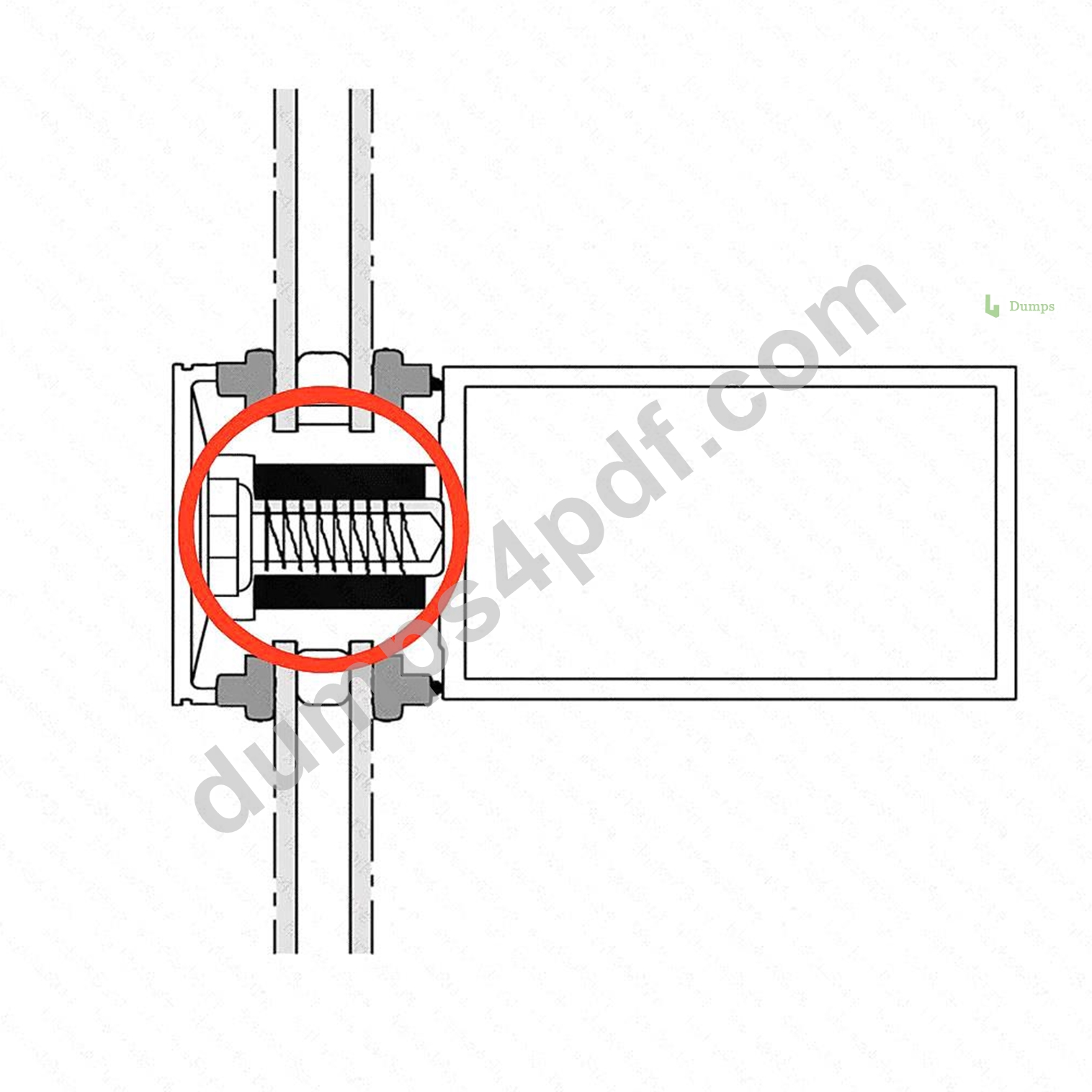

1. Understanding the Diagram
The three sections in the exhibit show different curtain wall mullion profiles (vertical and horizontal sections) designed for glazing systems.
In curtain wall design, aluminum mullions must accommodate:
* Structural loads (wind, dead load of glass, seismic)
* Thermal expansion and contraction of metal members
* Building movement (floor-to-floor deflection, live load, creep, seismic drift)
2. Why Vertical Expansion is Relevant
* The vertical mullions in curtain wall systems span multiple floors and are typically anchored at one end and allowed to float/slip at the other end to accommodate vertical building movement.
* Movement can be due to:
* Thermal expansion of aluminum mullions (aluminum has a high coefficient of thermal expansion).
* Inter-story drift from lateral loads.
* Floor live-load deflection.
* The mullion joinery and connections at the anchors are specifically detailed to allow vertical sliding while maintaining weather seals.
3. Why Other Options Are Incorrect
* A. Capillary action - This refers to water movement in small spaces; curtain walls are designed with weeps and pressure-equalized cavities to prevent it, but that is not what the mullion's slip connections are for.
* B. Horizontal expansion - Horizontal movement is generally handled at horizontal mullions
/transoms or gasket joints, not the vertical mullion extrusion as shown.
* D. Surface tension - Refers to water behavior, not a structural or thermal movement design issue.
4. NCARB ARE 5.0 PDD Study Guide References
* Content Area: Building Envelope Systems - Curtain Wall Detailing
* Key Sources:
* Architectural Graphic Standards - Curtain wall movement joints
* Building Construction Illustrated (Ching) - Curtain wall expansion and anchoring details
* AAMA (American Architectural Manufacturers Association) Curtain Wall Design Guide - Section on thermal movement and inter-story drift
NEW QUESTION # 39
The architect has completed 60% of the construction documents. The owner wants to establish the guaranteed maximum price (GMP) at this point before 100% of the construction documents are complete. Several flooring finish items are still undetermined.
What should be included in the project manual to make sure the contractor has a cost to cover all finishes?
- A. Schedule of flooring unit prices to be completed by the contractor
- B. Contingency of 10% added to the overall construction cost
- C. Allowance of $30/sq. yd. for floor finishes
- D. Alternate to change broadloom carpet to carpet tile
Answer: C
Explanation:
When a GMP (Guaranteed Maximum Price) is established before the design is 100% complete and specific materials are not yet chosen, the correct approach is to specify allowances in the project manual.
An allowance is a fixed monetary amount for a specific scope item (e.g., flooring finishes) that allows the contractor to carry a cost in the bid/GMP until the actual product is selected. This ensures the GMP covers the item without delaying pricing.
A). Contingency - Is for unforeseen conditions, not specific unselected finishes.
B). Schedule of unit prices - Typically used for variable-quantity work, not for unknown product selection.
D). Alternate - Provides an option for substitution, but does not guarantee a base cost in the GMP.
PDD Reference: ARE 5.0 PDD "Project Manual and Specifications-Allowances, Alternates, and Unit Prices," AIA A201 §3.8, CSI Division 01-General Requirements.
NEW QUESTION # 40
Refer to the exhibit.
What is the primary function of the 2 x 4 blocking shown at X in the drawing?
- A. Transfer the lateral loads from the ceiling joists
- B. Transfer the lateral load to the 1 x 8
- C. Brace the ceiling joists
- D. Support the top of the partition
Answer: C
Explanation:
Comprehensive Detailed Explanation with all NCARB ARE 5.0 Project Development and Documentation (PDD) Study Guide References:
In wood frame construction, blocking installed between joists at regular intervals (commonly 48 inches on center) serves primarily to brace and stabilize the joists laterally, preventing twisting and lateral displacement under load.
The 2x4 blocking at point X, placed perpendicular between the ceiling joists, acts as cross bracing.
It resists lateral torsional buckling of the joists and distributes loads evenly.
It also helps maintain alignment during construction and after the finish materials are installed.
The blocking does not support the partition top plate directly (that is the function of the studs beneath), nor does it transfer lateral load to the 1x8. Its main role is structural bracing for the joists.
Supporting References:
NCARB ARE 5.0 Review Manual, Project Development and Documentation, Structural Systems chapter Wood Frame Construction details from International Residential Code (IRC) Building construction texts such as "Fundamentals of Building Construction" by Allen and Iano, which describe blocking used to brace joists.
NEW QUESTION # 41
Coordination of a motorized movable partition used to subdivide a gymnasium should include which of the following?
- A. Fire protection engineer and the furniture and equipment consultant
- B. Structural engineer and the mechanical engineer
- C. Structural engineer and the electrical engineer
- D. Fire protection engineer and the electrical engineer
Answer: C
Explanation:
A motorized movable partition used to subdivide a gymnasium requires coordination with:
The structural engineer: to ensure the partition loads are supported, especially if the system is suspended or has track supports.
The electrical engineer: to provide power for the motorized operation, controls, and safety systems.
Mechanical and fire protection engineers are typically less involved unless the partition affects HVAC zones or fire separation requirements, and furniture consultants typically do not deal with structural or electrical coordination.
References:
NCARB ARE 5.0 Review Manual, Building Systems and Coordination chapter
Manufacturer installation guidelines for motorized partitions
MEP coordination best practices
NEW QUESTION # 42
Refer to the exhibit.
For which of the following connections could diagonal bracing be eliminated?
- A. B
- B. D
- C. C
- D. A
Answer: D
Explanation:
The diagrams depict metal stud or curtain wall connections to structural frames under wind loading. Diagonal bracing can be eliminated when the connection itself provides lateral restraint in both directions.
A: Shows a connection with angles or plates attached to resist both in-plane and out-of-plane forces, creating a moment-resisting connection that can handle wind loads without diagonal bracing.
B, C, D: These connections allow slip or have limited fixity-requiring separate bracing to resist lateral loads.
PDD Reference: ARE 5.0 PDD "Structural Systems-Lateral load resistance in curtain wall and stud framing connections"; AISC Steel Design Guide for cladding attachment; Curtain wall engineering details.
NEW QUESTION # 43
The design of a 10-story residential building features a curtain wall system on all four elevations. Due to diurnal temperature swings in the area, the curtain wall will need a thermal break to prevent the transfer of heat into the building.
Click on the thermal break in the pressure-plate mullion detail.
Answer:
Explanation:
Explanation:
In the provided pressure-plate curtain wall mullion detail, the thermal break is typically located between the interior and exterior aluminum components of the mullion to prevent conductive heat transfer.
# Thermal Break Location:
Look for the black or dark shaded strip in the middle of the mullion where the two separate metal parts meet - this strip is a non-metallic insulating material (usually polyamide or other plastic) that interrupts the metal-to-metal connection between interior and exterior.
In this image, the thermal break is located:
## In the vertical center of the mullion, between the inner and outer aluminum extrusions, where a black isolator or separator is shown (just above and below the screw/fastener).
Clicking on this narrow dark band (thermal isolator) between the inner and outer components of the curtain wall mullion would be the correct hotspot answer.
NEW QUESTION # 44
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
The owner requests that the metal panel skin be changed to EIFS.
Which of the following architectural sheets require changes to the notes and/or details? Check the three that apply.
- A. A-04
- B. A-06
- C. A-00
- D. A-07
- E. A-03
- F. A-02
Answer: B,D,E
Explanation:
Elevations (A-03): material callouts, notes, and textures for every façade.
Wall sections (A-06): assembly build-ups change (continuous insulation, drainage plane, WRB, attachment to PEMB girts, control joints, weeps, and terminations).
Details (A-07): heads/sills/jambs, base of wall/grade, parapet, expansion and control joints, and transition flashing details must be revised for EIFS.
Sheets like A-00 (cover) or A-02 (plans) generally don't carry the envelope system specifics and would not need detail changes for a cladding swap.
PDD refs: Drawings coordination-plans vs. elevations vs. sections/details; Division 07 EIFS system requirements; PEMB cladding interfaces.
NEW QUESTION # 45
Refer to the exhibit.

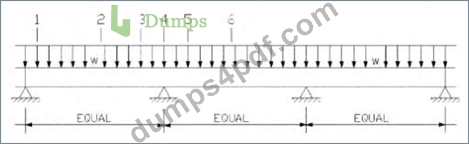

It is required to cut a hole in the web of the beam shown.
Which of the locations would be best? Check the two that apply.
- A. Location 3
- B. Location 5
- C. Location 2
- D. Location 4
- E. Location 1
Answer: C,D
Explanation:
Cutting holes in beam webs is common for running mechanical, electrical, or plumbing services but must be done carefully to avoid weakening structural integrity.
Holes should be located near mid-span supports (points of low bending moment and high shear) to reduce impact on beam bending strength.
Holes should not be located near areas of maximum bending moment (typically mid-span between supports), because this is where the beam experiences maximum tension or compression.
Locations 2 and 4 are at or near the beam supports (shear zones), and generally small holes can be cut there, following size limits and reinforcement guidelines.
Locations 1, 3, and 5 are closer to mid-span or areas of high bending stress, so holes here risk compromising the beam's moment capacity.
References:
NCARB ARE 5.0 Review Manual, Structural Systems chapter
Steel construction and beam design guidelines (AISC)
Building codes and structural engineering best practices for web penetrations
NEW QUESTION # 46
Fire and smoke control requirements for air ducts include which of the following? Check the three that apply.
- A. Smoke barrier
- B. Fire damper
- C. Balancing damper
- D. Smoke damper
- E. Air-handler shut-down sensors
- F. Variable-volume smoke controls
Answer: B,D,E
Explanation:
HVAC duct penetrations through fire/smoke rated assemblies require listed dampers and control/sensing to limit spread of flame and smoke.
Fire dampers (D) close on heat to maintain the fire-resistance rating of penetrated assemblies.
Smoke dampers (A) limit smoke migration in smoke partitions/barriers and in smoke control systems.
Air-handler shut-down sensors (F) (e.g., duct smoke detectors interfaced with the FA system) stop fans to prevent smoke distribution.
Not required: Balancing dampers (B) (for airflow only); Smoke barrier (C) (a wall/assembly requirement, not a duct device); Variable-volume smoke controls (E) (project-specific engineering, not a base requirement).
PDD refs: IBC Ch. 7 & 9; IMC §§607 (dampers) & 606 (smoke detection in ducts); ARE 5.0 PDD-MEP/fire protection integration.
NEW QUESTION # 47
In a brick veneer wall, what is the primary purpose of the 2-inch air space between the back of the brick and the sheathing?
- A. To meet the minimum R-value
- B. Provide space for roof drain piping
- C. Allow for differential movement
- D. Minimize mortar bridging
Answer: D
Explanation:
Purpose of the Air Space in Brick Veneer Walls
In a typical brick veneer cavity wall assembly, there is an air space between the back side of the brick and the sheathing (or water-resistive barrier) of the structural wall. This space is typically 1 to 2 inches wide and serves several critical functions:
* Moisture Drainage and Ventilation
* Rainwater can penetrate brick veneer through joints and cracks.
* The air cavity allows water to drain down the back of the veneer to flashing and out through weep holes.
* It also provides ventilation to help dry out the wall assembly.
* Minimizing Mortar Bridging
* During construction, mortar can drop down into the cavity from bricklaying.
* If mortar bridges across to the sheathing, it can create a path for moisture to move into the structure.
* The 2-inch cavity helps reduce the chance that mortar droppings will fully bridge the gap, ensuring the drainage plane stays functional.
Why Other Options Are Incorrect:
* A. To meet the minimum R-value - The air space in brick veneer is not designed as insulation; its thermal benefit is minimal compared to continuous insulation layers.
* B. Allow for differential movement - Brick veneer differential movement is accommodated by wall ties and control joints, not by the air cavity.
* C. Provide space for roof drain piping - Roof drainage piping is routed separately and is not part of the brick veneer cavity design.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Building Envelope Systems - Masonry Wall Assemblies
* Source References:
* Building Construction Illustrated (Ching) - Brick Veneer Wall Sections and Cavity Function
* Architectural Graphic Standards - Masonry Veneer Construction Details
* BIA (Brick Industry Association) Technical Notes 21 & 21A - Cavity Wall Design and Construction Key Principle:
A 2-inch air cavity behind brick veneer is primarily to ensure proper drainage and to minimize mortar bridging, which would otherwise allow moisture intrusion into the building.
NEW QUESTION # 48
......
Authentic Best resources for PDD Online Practice Exam: https://pass4sure.dumps4pdf.com/PDD-valid-braindumps.html
